Previously, I reviewed what we currently know about anole fossils – these fossils are preserved in amber, a fossilised tree sap/resin from Mexico and the Dominican Republic (like the one pictured right). Today, I want to share how I have been using high resolution x-ray computed tomography, a.k.a CT scanning to look at these fossils and so peer into the past.
Background to CT scanning Amber
CT scanning involves x-raying an object from many angles, and then compiling these x-rays to reconstruct 3D models of the object (more detailed description here). CT scanning works when the object being scanned is made of different materials that each absorb x-rays differently. Think of a medical x-ray; skin absorbs far fewer x-rays than bone, so the two show up as different shades of grey on the developed x-ray.
The inclusions in amber are usually subfossils, where organic material still remains (e.g., bone). This means there will be different materials with different x-ray absorption. Amber absorbs more x-rays than air (similar density to a plastic drinks bottle), but fewer than bone. I digitally remove the amber and make a 3D model of the fossil inside.
CT scanning is great technique for studying amber specimens because the x-rays do not damage the amber (no evidence of clouding), and it can be used to see inside even the most opaque of pieces. With this method, you can create see in great detail inclusion in the amber without any destruction to the piece.
Exploring Dominican amber using CT
To demonstrate how CT scanning is great for amber, I shall show a famous Dominican amber anole fossil, housed at the American Museum of Natural History. It was described by Kevin de Queiroz and co-authors in 1998, and was also featured in the Losos ‘Lizards in an Evolutionary tree’ book. The fossil is most likely a hatchling anole (27mm SVL). It died in a well laid out pose, lying on its stomach with its legs out stretched.

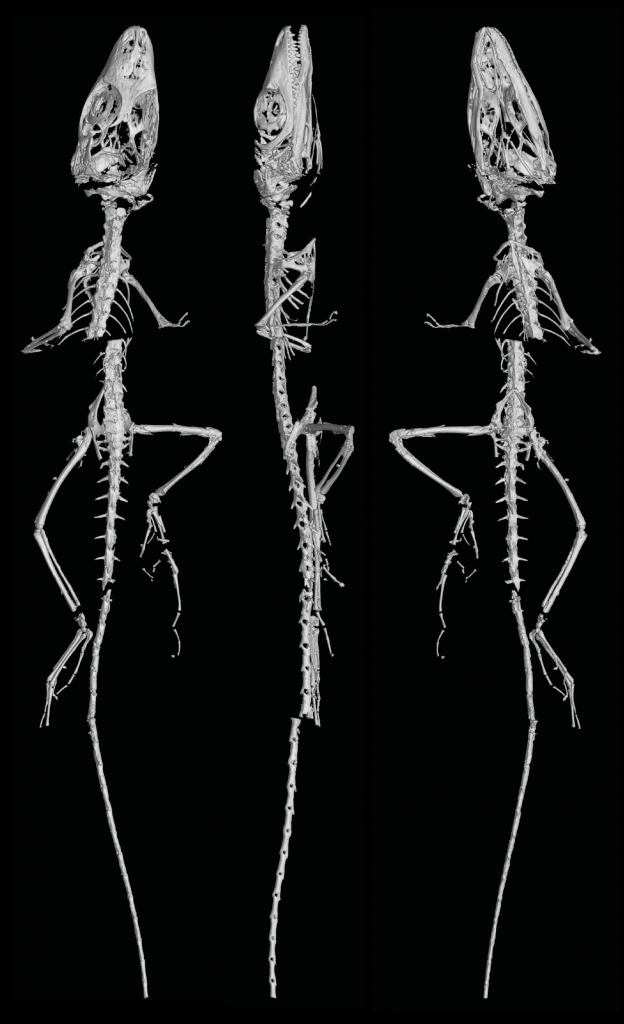

I chose to examine this specimen using micro CT to see what information we could glean from such a rare piece. To the left is a 3D model of the skeleton, shown from the back, side and belly (left to right).
I discovered that the inclusion in this amber fossil is remarkably well preserved – the whole skeleton is almost completely preserved, except for 3 breaks that cut thorugh the lizard that take out parts of its forelimbs.
Amazingly, the lizard is not squashed – it retains its 3D form as in life.
CT scanning has also shown me that there’s more to these amber fossils than skeleton. When I scanned some other amber specimens kindly leant to me from private collectors of Dominican amber, I found some very exciting things. Within the amber, there are often air pockets. Usually these are just air bubbles, perhaps due to gas escaping from rotting material encased in the amber. But sometimes, the air turns out to have shape!

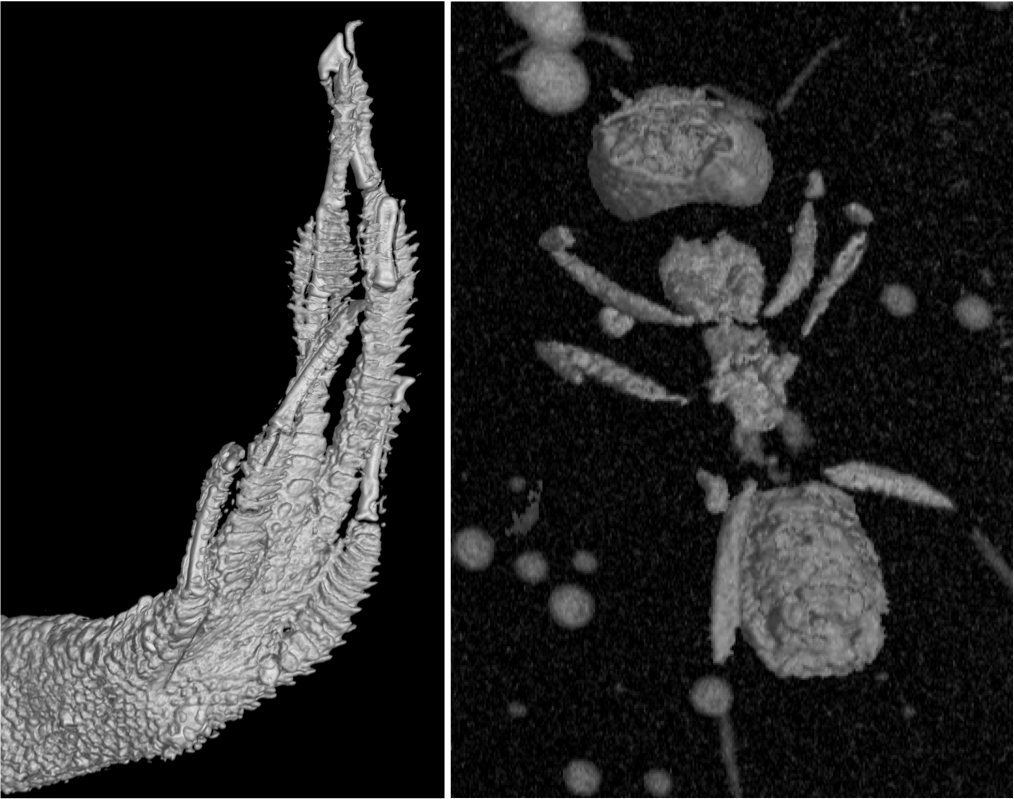

When the air is contained within the body cavity, the skin leaves an impression on the amber, so we can see soft tissue in remarkable detail. To the right is an anole forelimb, where in addition to bone, we see the impression of the soft tissue as an air-filled void in the amber. Also, I occasionally see interesting invertebrate inclusions, such as the ant shown far right, which are also preserved as an air-filled void in the amber.
In the last few years, CT scanning amber has become increasingly popular (e.g. see here for a video of a spider in Baltic amber, and here for the surprising story of a mite that was hitching a ride on the spider!). Scientists are finding that there is a wealth of information encased in these little golden gems. Creatures that may otherwise not fossilize well can be caught in amber and preserved in remarkable detail. The future of anole fossil research certainly lies here – Watch this space!
***
If you have a lizard in amber, we’d love to hear from you! Please contact the author of this post.
- 20-Million-Year-Old Fossils Reveal Ecomorph Diversity in Hispaniola - July 27, 2015
- Anolis proboscis: Ugly and Famous - September 5, 2014
- The Fossil Species Anolis electrum Gets an X-ray Makeover - August 14, 2014
Paul Adams
An absolutely fascinating and eye-opening article. Keep up the good work!
Jean-Michel D
These are amazing images and a great story Dr. Sherratt! Do you have any amber fossils of other lizard or amphibian fauna? Any snakes? Are you solely focusing on Anolis?
Emma Sherratt
Thank you! So I have also examined using CT some geckos in amber. I am aware of one frog from Dominican amber, and there may be others lurking in private collections but I haven’t seen one myself. For snakes, I know of no amber snake fossil – at least none that are not fake! The vertebrates that get caught in amber are usually very small – less than 40mm snout-vent length.
Emma Sherratt
Anyone interested in CT scanning fossils should take a look at this video: http://www.youtube.com/watch?v=OJxT8N99HkM&feature=player_embedded
The wonderful world of fossil invertebrates, in 3D! All with exciting music too!
220mya
Awesome post! Just a quick note that the term ‘subfossil’ is usually used to refer to the age of a specimen (typically <1000 years old), rather than its preservation. There are plenty of much older (10 ka to hundreds of millions) fossils that preserve organic remains, including soft tissue, which are considered true fossils. In fact, nearly all fossil bones (even those over 400 million years old) still retain plenty of the original biogenic material, its just their pores and spaces have been filled by minerals. A large portion of fossil bone (going back at least 300 million years, if not further) still definitely has degraded remnants of collagen, and sometimes other tissue as well (e.g., http://www.sciencemag.org/content/316/5822/277.short)
Emma Sherratt
Oh, thank you for correcting me on that!
